Contact Problem Analyzer TED/CPA
Function of TED/CPA
　 　 　 　　　　　　   Contents 　 　 　 　 　 　
　 1. DRY contact pressure calculation using Half Space Assumption
　 2. Calculation of Inner Stresses using Half Space Assumption
　 3. Dry calculation by Elasto-Plastic FEM
　 4. Rolling Contact calculation using Half Space Assumption
　 5. Rolling contact calculation of deep groove ball bearing
　 6. Rolling Contact calculation by Elasto-Plastic FEM
　 7. Calculation of Elasto-Hydrodynamic Lubrication for Heavy Load
　 8. Calculation of Elasto-Hydrodynamic Lubrication for Roller Bearing
　 9. EHL calculation with dimples on the surface
 10. Unsteady EHL calculation of a disk that reciprocally moves
 11. Hydrodynamic calculation of Journal Bearing
 12. Hydrodynamic calculation of Ｐlane Ｂearing
　 1. DRY contact pressure calculation using Half Space Assumption

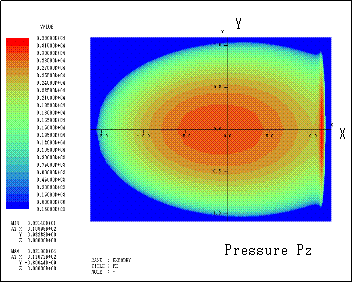

テキスト ボックス: Here, the calculation of the contact pressure by dynamic mesh is shown. Boundary points are moved so as to the pressures become 0 at the points. As a result, the shape of the contact surface is calculated. Load ： 100 KN Coefficient of Friction： 0.2 Young’s Modulus： 206 GPa Poisson Ratio： 0.3 Ball is assumed to be sliding to the –Y direction. The contact shape is cut at the shoulder and the edge load can be seen at the point. Lower figures show the contour figure and the mesh figure of the pressure Pz.
