9. EHL calculation with dimples on the surface

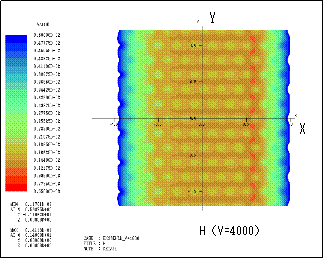

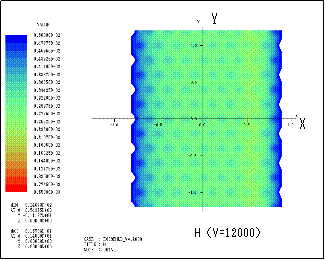

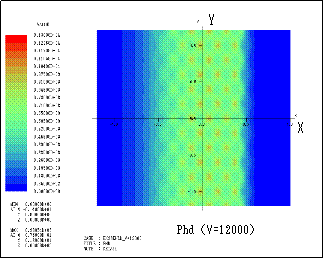

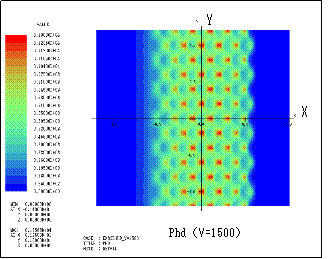

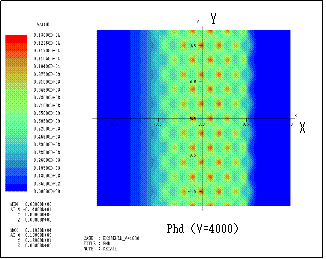

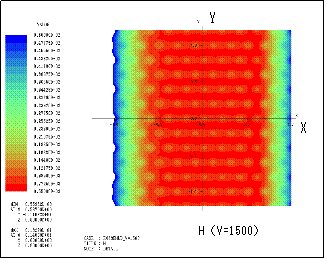

テキスト ボックス: The distribution of hydrodynamic pressure Phd and oil film thickness H at the velocity of 12000, 4000 and 1500 mm/sec are as follows. As the speed becomes slower, the influence of the dimples becomes larger and the film thickness becomes thinner.
