Contact Problem Analyzer TED/CPA Function 06

Contact Problem Analyzer TED/CPA

　

　

　

　　　　　　 Contents

　

　

　

　

　

　

　 1. DRY contact pressure calculation using Half Space Assumption

　 2. Calculation of Inner Stresses using Half Space Assumption

　 3. Dry calculation by Elasto-Plastic FEM

　 4. Rolling Contact calculation using Half Space Assumption

　 5. Rolling contact calculation of deep groove ball bearing

　 6. Rolling Contact calculation by Elasto-Plastic FEM

　 7. Calculation of Elasto-Hydrodynamic Lubrication for Heavy Load

　 8. Calculation of Elasto-Hydrodynamic Lubrication for Roller Bearing

　 9. EHL calculation with dimples on the surface

10. Unsteady EHL calculation of a disk that reciprocally moves

11. Hydrodynamic calculation of Journal Bearing

12. Hydrodynamic calculation of Ｐlane Ｂearing

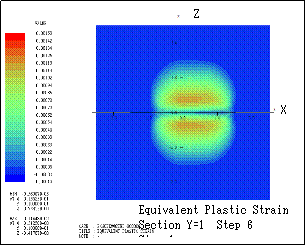

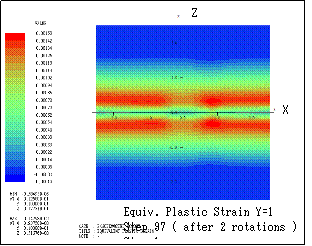

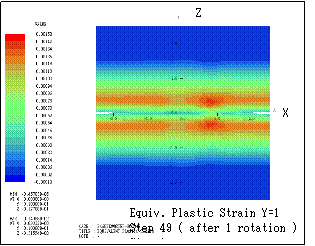

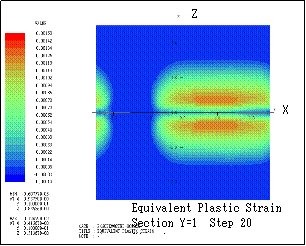

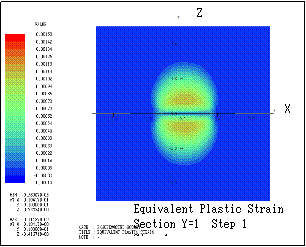

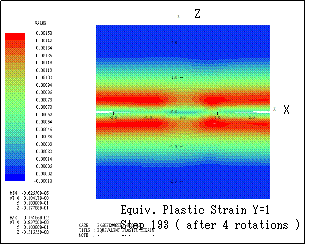

テキストボックス: Here the transition of equivalent plastic strain (section Y=1) is shown. Step n indicates that the bodies are sequentially rotated in X
direction by n elements.

It can be seen that the unevenness of the
strain is remaining after 6 rotations.

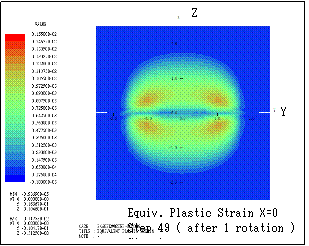

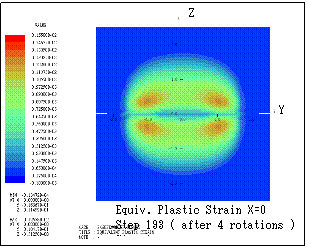

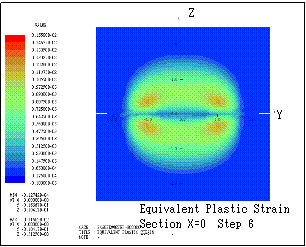

テキストボックス: Here the transition of equivalent plastic strain (section X=0) is shown. Step n indicates that the bodies are sequentially rotated in X
direction by n elements.

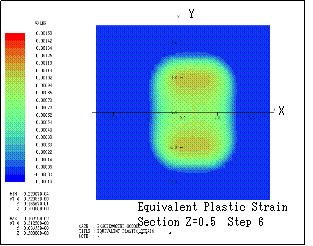

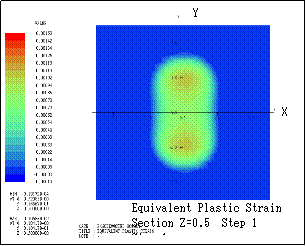

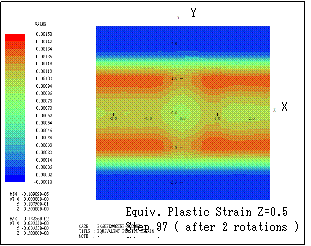

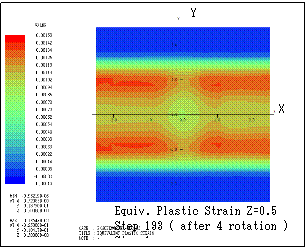

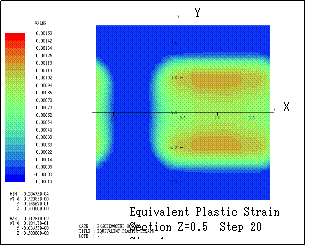

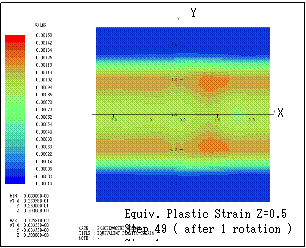

テキストボックス: Here the transition of equivalent plastic strain (section Z=0.5) is shown. Step n indicates that the bodies are sequentially rotated in X direction by n elements.

It can be seen that the unevenness of the
strain is remaining after 6 rotations.
